Brake Chamber Part Numbers

ALSD1624

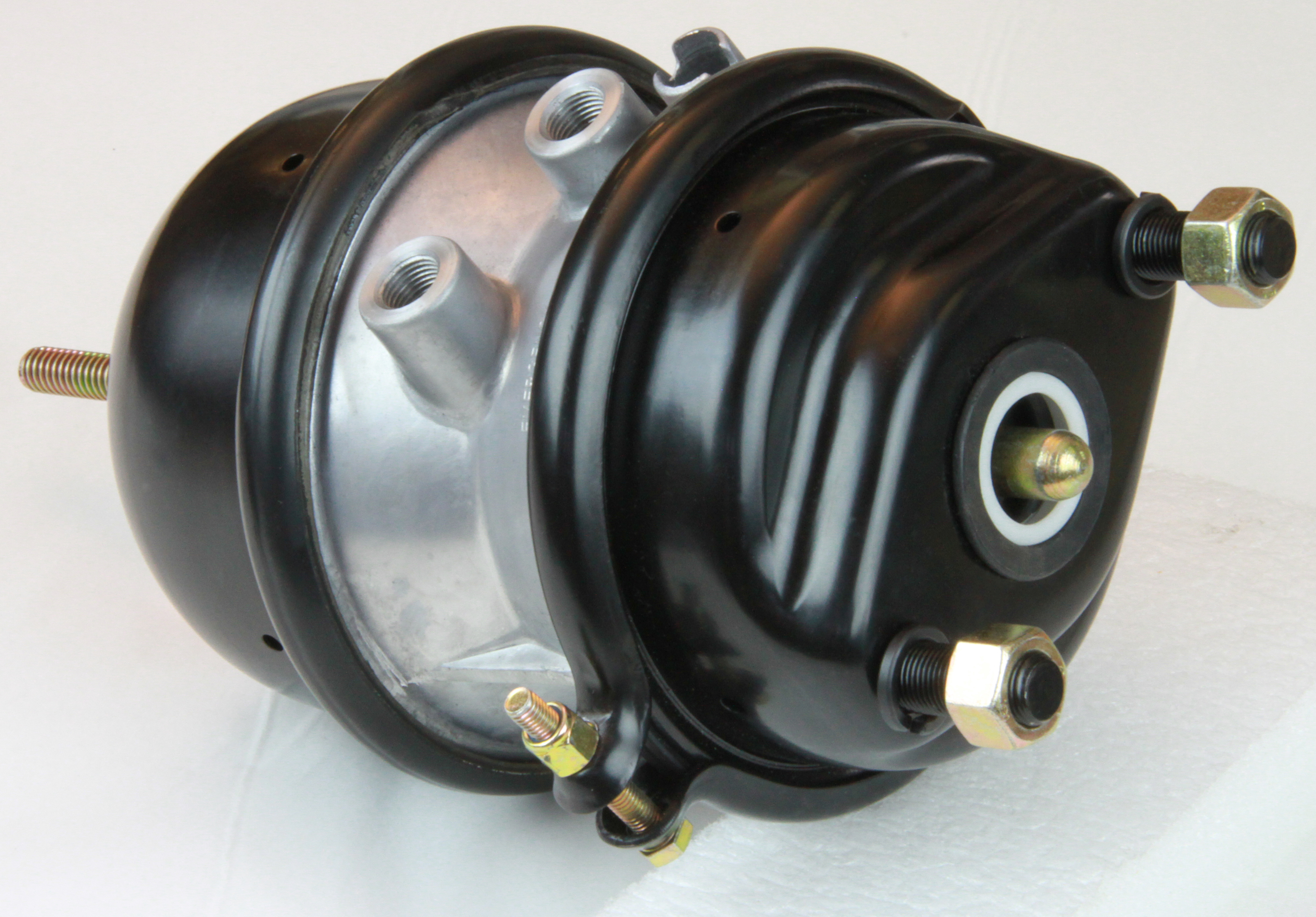

16/24 Double Diaphragm Spring Brake

SPRING BRAKEIndustry Reference: T16/24DISC

Bolt Distance Center: 120.70 mm

Bolt Thread: M16 x 1.5

Bolt Length: 38 mm

Stroke Length From Cover: .60 in. 15 mm

Port Thread: NPTF 3/8"-18

Full Stroke: 2.25 in. 60 mm

ADB Model/Application: Motorcoach applications for Knorr Bremse SN7, Meritor ELSA-2, EX225 H2

ALSD1824

18/24 Double Diaphragm Spring Brake

SPRING BRAKEIndustry Reference: T18/24DISC

Bolt Distance Center: 120.70 mm

Bolt Thread: M16 x 1.5

Bolt Length: 38 mm

Stroke Length From Cover: .60 in. 15 mm

Port Thread: NPTF 3/8"-18

Full Stroke: 2.25 in. 60 mm

ADB Model/Application: Combination spring brake for Bendix and WABCO trailer and drive axles

ALSD2024

 20/24 Double Diaphragm Spring Brake

SPRING BRAKEIndustry Reference: T20/24DISC

Bolt Distance Center: 120.70 mm

Bolt Thread: M16 x 1.5

Bolt Length: 38 mm

Stroke Length From Cover: .60 in. 15 mm

Port Thread: NPTF 3/8"-18

Full Stroke: 2.25 in. 60 mm

ADB Model/Application: Combination spring brake for WABCO PAN 22 trailer axles

ALSD2030

20/30 Double Diaphragm Spring Brake

SPRING BRAKEIndustry Reference: T20/30DISC

Bolt Distance Center: 120.70 mm

Bolt Thread: M16 x 1.5

Bolt Length: 37 mm

Stroke Length From Cover: .60 in. 15 mm

Port Thread: NPTF 3/8"-18

Full Stroke: 2.5 in. 64 mm

ADB Model/Application: Combination spring brake for Haldex D22LD trailer axles

ALSD2424

24/24 Double Diaphragm Spring Brake

SPRING BRAKEIndustry Reference: T24/24DISC

Bolt Distance Center: 120.70 mm

Bolt Thread: M16 x 1.5

Bolt Length: 43 mm

Stroke Length From Cover: .60 in. 15 mm

Port Thread: NPTF 3/8"-18

Full Stroke: 2.25 in. 60 mm

ADB Model/Application: Combination spring brake for Bendix and WABCO trailer and drive axles

ALSD2430

24/30 Double Diaphragm Spring Brake

SPRING BRAKEIndustry Reference: T24/30DISC

Bolt Distance Center: 120.70 mm

Bolt Thread: M16 x 1.5

Bolt Length: 45 mm

Stroke Length From Cover: .60 in. 15 mm

Port Thread: NPTF 3/8"-18

Full Stroke: 2.5 in. 64 mm

ADB Model/Application: Combination spring brake for Meritor EX225 H2 (Severe Service)
