Service Chamber Numbers
ALSDT14

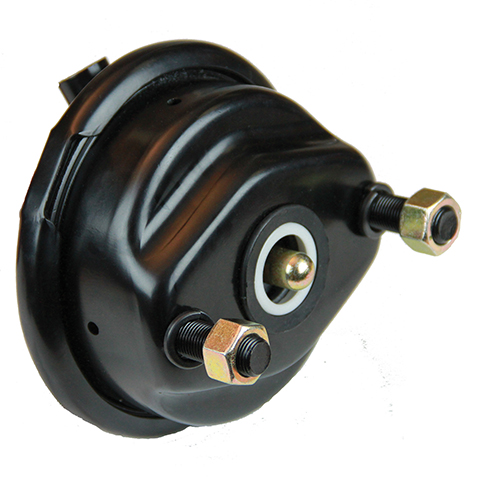

Type 14 Diaphragm Service Chamber
Industry Reference: T14Disc
Bolt Distance Center: 120.70 mm
Bolt Thread: M16 x 1.5
Bolt Length: 37 mm
Stroke Length From Cover: .60 in. 15 mm
Port Thread: NPTF 3/8"-18
Full Stroke: 2.25 in. 60 mm
ADB Model/Application: Service chamber for Bendix applications
ALSDT16
Type 16 Diaphragm Service Chamber
Industry Reference: T16Disc
Bolt Distance Center: 120.70 mm
Bolt Thread: M16 x 1.5
Bolt Length: 37 mm
Stroke Length From Cover: .60 in. 15 mm
Port Thread: NPTF 3/8"-18
Full Stroke: 2.25 in. 60 mm
ADB Model/Application: Service chamber for Bendix / Meritor applications
ALSDT18
Type 18 Diaphragm Service Chamber
Industry Reference: T18Disc
Bolt Distance Center: 120.70 mm
Bolt Thread: M16 x 1.5
Bolt Length: 37 mm
Stroke Length From Cover: .60 in. 15 mm
Port Thread: NPTF 3/8"-18
Full Stroke: 2.5 in. 64 mm
ADB Model/Application: Service chamber for Bendix, Knorr, WABCO applications
ALSDT20
Type 20 Diaphragm Service Chamber
Industry Reference: T20Disc
Bolt Distance Center: 120.70 mm
Bolt Thread: M16 x 1.5
Bolt Length: 37 mm
Stroke Length From Cover: .60 in. 15 mm
Port Thread: NPTF 3/8"-18
Full Stroke: 2.5 in. 64 mm
ADB Model/Application: Service chamber for Bendix, Haldex, Knorr, Meritor, WABCO applications
ALSDT24
Type 24 Diaphragm Service Chamber
Industry Reference: T24Disc
Bolt Distance Center: 120.70 mm
Bolt Thread: M16 x 1.5
Bolt Length: 37 mm
Stroke Length From Cover: .60 in. 15 mm
Port Thread: NPTF 3/8"-18
Full Stroke: 2.5 in. 64 mm
ADB Model/Application: Service chamber for Bendix, Haldex, Knorr, Meritor, WABCO applications
